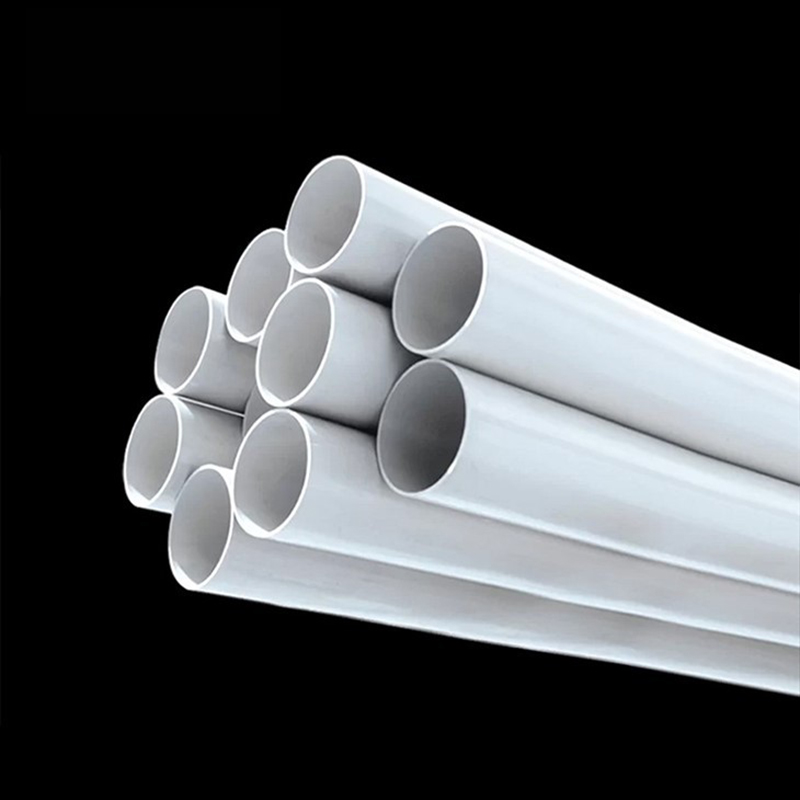

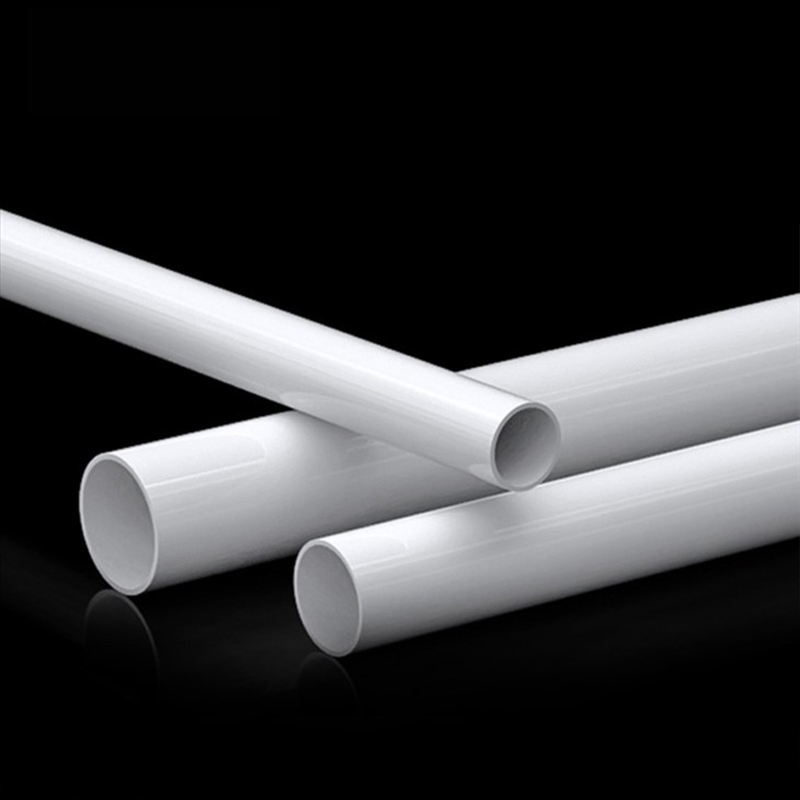

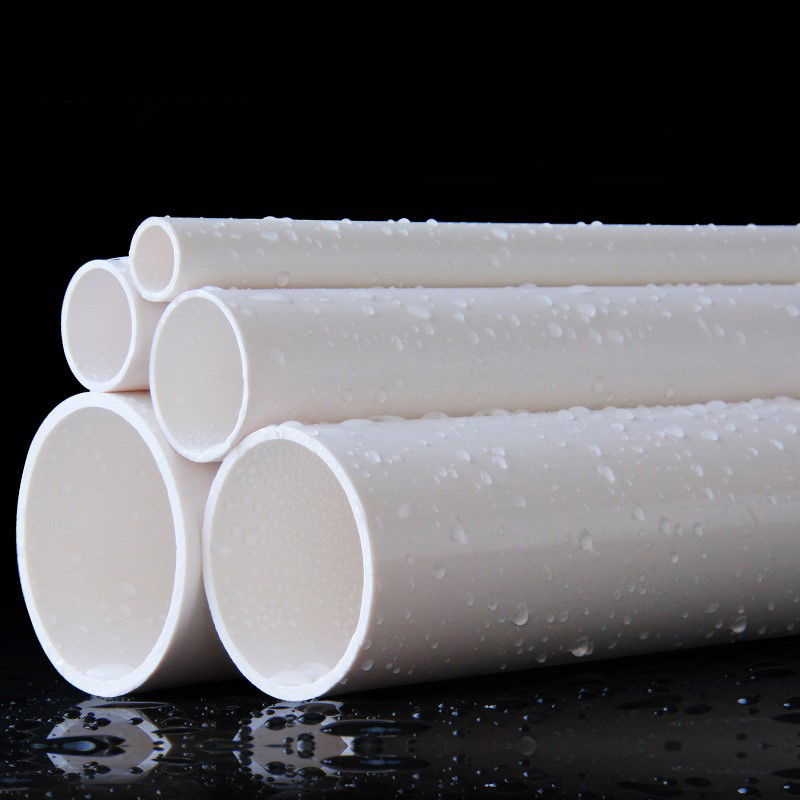

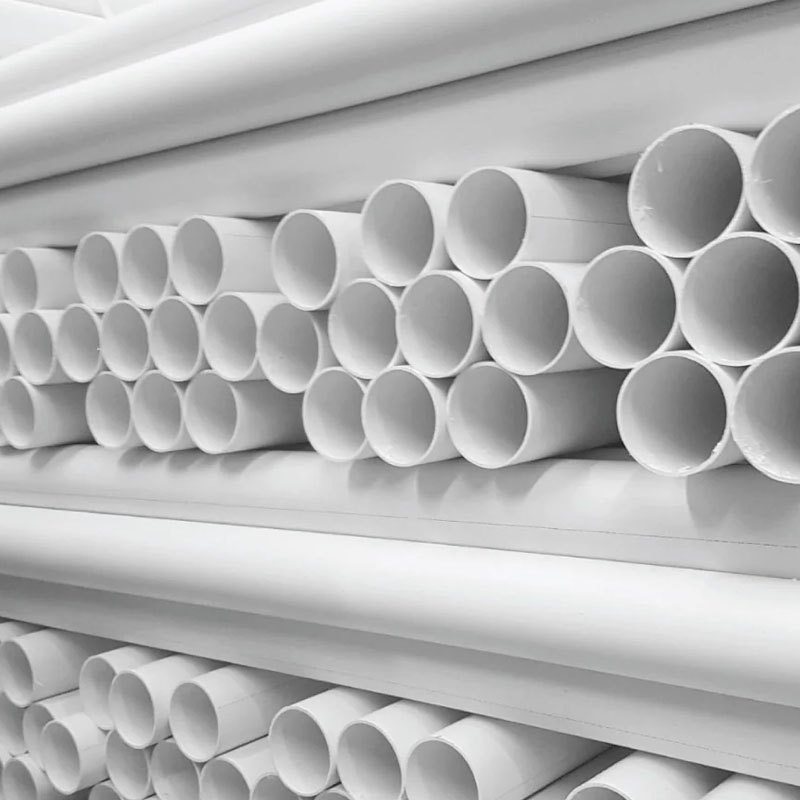

Name: PVC pipes for industrial pipelines
SKU: 0

PVC Pipe

PVC pipes for industrial pipelines

1. Provide the Competition Price
2. Place of Origin: China
3. Price Term: EXW/ FOB/ CFR/ CNF/ CIF/ DDP/ etc
4. Payment Term: T/T
5. Delivery Time: 7 Days
6. Transportation: By sea, airplane, or Land transportation

+8613361290208

info@tisco-metal.com

Inquiry Now

PRODUCT DESCRIPTION

Polyvinyl Chloride Pipe/PVC Pipe
Pressure	4bar/6bar/9bar/12bar/16bar
Shape	Round Straight Pipe / Pipe in Coil (DN≤90mm)
Usage	Transporting water
Certification	ISO 9001:2015
Wall Thickness	1mm-60mm or as required
Diameter	20mm-1000mm or as required
Length	6m-12m or as required
Surface Treatment	Smoothly / White surface with marking words
Deep process	Cutting/ Bending/ Assembling
Packing	Standard Seaworthy Packing
Satisfy Your Needs	We can customize product specifications, sizes and shapes according to your requirements.

Nominal outer diameter(mm)	Nominal wall thickness en/mm
	S16	S12.5	S10	S8	S6.3	S5	S4
	Standard size
	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
	Nominal pressure (MPa)
	0.63	0.8	1.0	1.25	1.6	2.0	2.5
20						2.0	2.3
25					2.0	2.3	2.8
32				2.0	2.4	2.9	3.6
40			2.0	2.4	3.0	3.7	4.5
50		2.0	2.4	3	3.7	4.6	5.6
63	2.0	2.5	3.0	3.8	4.7	5.8	7.1
75	2.3	2.9	3.6	4.5	5.6	6.8	8.4
90	2.8	3.5	4.3	5.4	6.7	8.2	10.1
110	2.7	3.4	4.2	5.3	6.6	8.1	10.0
125	3.1	3.9	4.8	6.0	7.4	9.2	11.4
140	3.5	4.3	5.4	6.7	8.3	10.3	12.7
160	4.0	4.9	6.2	7.7	9.5	11.8	14.6
180	4.4	5.5	6.9	8.6	10.7	13.3	16.4
200	4.9	6.2	7.7	9.6	11.9	14.7	18.2
225	5.5	6.9	8.6	10.8	13.4	16.6
250	6.2	7.7	9.6	11.9	14.8	18.4
280	6.9	8.6	10.7	13.4	16.6	20.6
315	7.7	9.7	12.1	15.0	18.7	23.2
355	8.7	10.9	13.6	16.9	21.1	26.1
400	9.8	12.3	15.3	19.1	23.7	29.4
450	11.0	13.8	17.2	21.5	26.7	33.1
500	12.3	15.3	19.1	23.9	29.7	36.8
560	13.7	17.2	21.4	26.7
630	15.4	19.3	24.1	30.0
710	17.4	21.8	27.2
800	19.6	24.5	30.6
900	22	27.6	34.4
1000	24.5	30.6	38.2
1200	29.4	36.7	45.9
